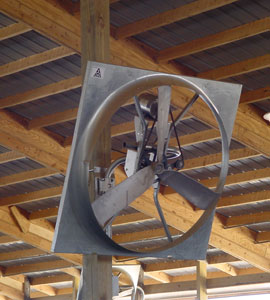

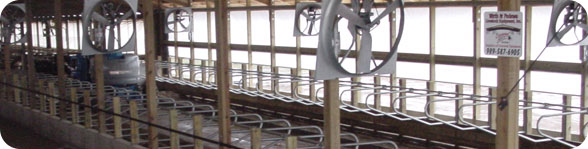

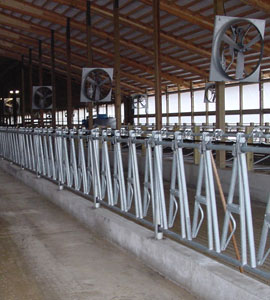

36” Apex Fan, 1 HP – 1 phase and 3 phase
Apex fans come with belt tighteners and cast aluminum props
| Catalog No. | Drive | 0.0" SP
CFM | CFM
Watt | kWh |
| AX361G3-24 | belt w/tensioner | 15,570 | 11.9 | 1.31 |
Spread and Throw
| Airflow = 15,500 cfm | | Throw | FPM | MPH | Spread |
at fan
10' | 2,200
1,870 | 25.0
21.3 | 3'
5' |
20'
30' | 1,230
880 | 14.0
10.0 | 17'
29' |
40'
50' | 680
570 | 7.8
6.5 | 36'
41' |
60'
70' | 480
420 | 5.5
4.8 | 45'
48' |
Recommended Spacing: 36' - 48'
48” Apex Fan, 1-1/2 HP – 1 phase and 3 phase
Apex fans come with belt tighteners and cast aluminum props
| Catalog No. | Drive | 0.0" SP
CFM | CFM
Watt | kWh |
| AX4815G3-24 | belt | 25,020 | 17.0 | 1.47 |
Spread and Throw
| Airflow = 25,020 cfm | | Throw | FPM | MPH | Spread |
at fan
10' | 2,000
1,700 | 22.6
19.2 | 4'
7' |
20'
30' | 1,120
800 | 12.7
9.1 | 23'
38' |
40'
50' | 620
520 | 7.0
5.9 | 48'
54' |
60'
70' | 440
380 | 5.0
4.3 | 60'
64' |
Recommended Spacing: 48' - 56'
51” Apex Fan, 1-1/2 HP - 1 Phase and 3 Phase
Apex fans come with belt tighteners and cast aluminum props
| Catalog No. | Drive | 0.0" SP
CFM | CFM
Watt | kWh |
| AX5115G | belt | 27,820 | 17.2 | 1.62 |
Spread and Throw
| Airflow = 27,820 cfm | | Throw | FPM | MPH | Spread |
at fan
10' | 1,960
1,670 | 22.3
18.9 | 4'
7' |
20'
30' | 1,100
780 | 12.5
8.9 | 25'
41' |
40'
50' | 610
510 | 6.9
5.8 | 51'
58' |
60'
70' | 430
370 | 4.9
4.2 | 64'
68' |
Recommended Spacing: 48' - 56'
| |
